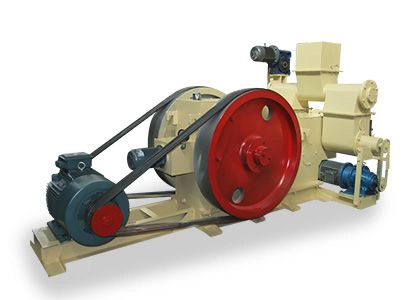

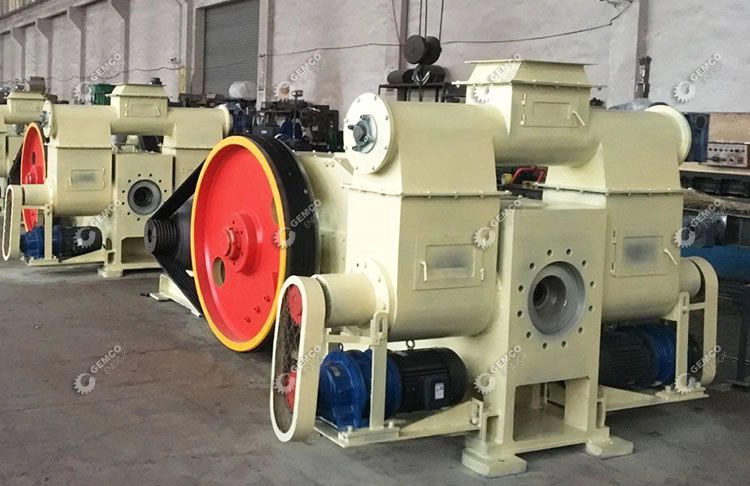

Mechanical stamping briquette press is a kind of biomass briquette press used to make wood chips, sawdust, straw, stalk, peanut shell, bamboo powder and other crop or forestry wastes into solid fuel briquettes.
It is also a press machine to make pellets and briquettes together, since the briquettes made by this press are cylindrical rod shape, and the size can range from 8/10/22mm diameter pellets to 30/70mm round briquettes. If you want to make both the pellets and briquettes with one machine, this briquetting press is your ideal choice. You only need to change the molds.
 |
 |
| Briquetting Mould (Used to press briquettes) |
Pelletizing Mould (Used to press pellets) |
Video of mechanical stamping briquette press
φ8mm Pellets Plant
φ70mm Briquettes Plant
Yield with different molds (raw material sawdust: moisture content 15%, size: 3-5mm)
| Mold Size | φ8mm | φ10mm | φ22mm | φ30mm | φ70mm |
|---|---|---|---|---|---|
| Holes | 61 | 37 | 7 | 4 | 1 |
| Capacity(kg) | 950 | 900 | 820 | 880 | 1200 |
front
flank
flank
behind
Technical Parameter of Mechanical Stamping Briquette Press
| Main Components | Main Engine, Feeder, Electric control cabinet |
|---|---|
| Specifications | Diameter 8mm-22mm pellets |
| Diameter 30-70mm briquettes | |
| Capacity | 0.8-1.2 t/h |
| Density | 1000-1300kg/m3 |
| Main engine power | 45KW |
| Weight | 7000kg |
| Dimensions | Main engine 3.4mX2mX1.8m |
| Electric control cabinet 1.2mX0.6mX1.2m | |
| Operator | Two |
| Area | About 80 square meters |
 |
 |
 |
 |
| φ8mm Pellets(rice husk) | φ10mm Pellets | φ22mm Briquettes | φ30mm Briquettes(sawdust) |
 |
 |
 |
 |
| φ70mm Briquettes | φ70mm cotton straw briquettes | φ70mm maize straw briquettes | briquettes(woods) |
