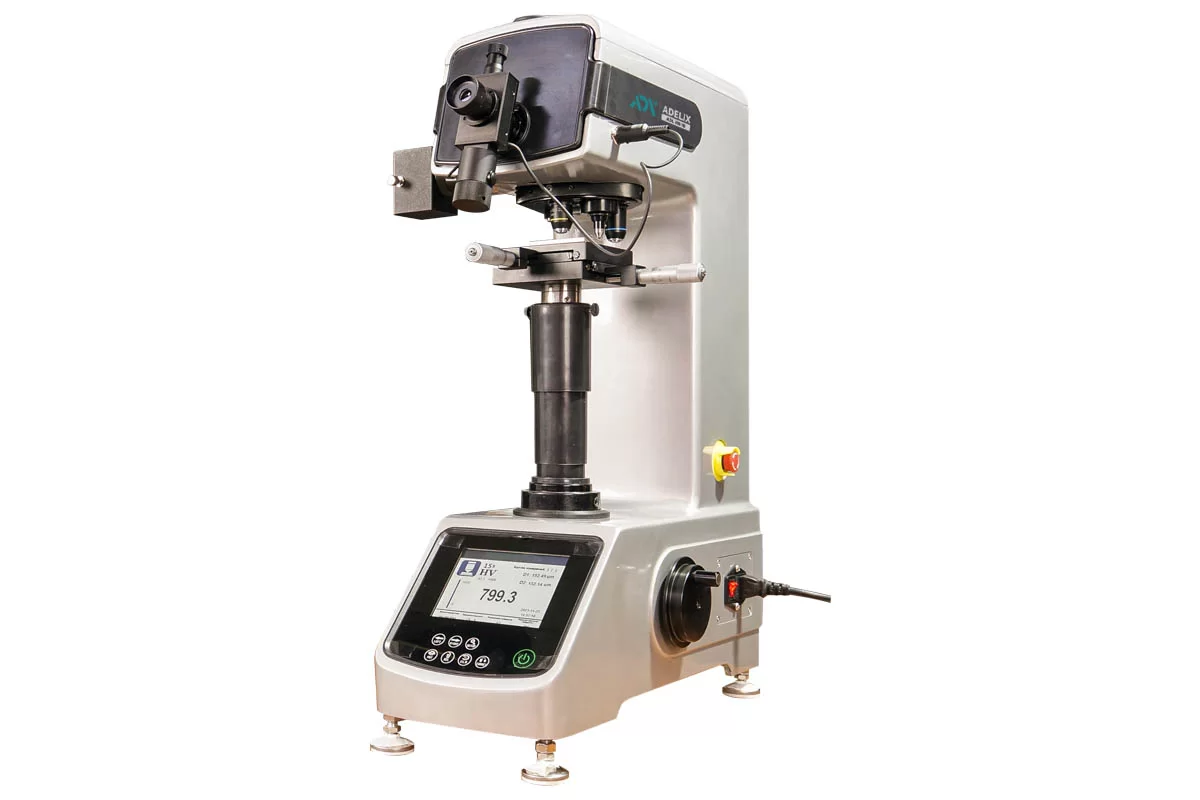

Benchtop automatic Vickers Hardness Tester ADL HV10/30/50
Benchtop automatic Vickers hardness tester ADL HV10/30/50 – Hardness measurement with Vickers method in the load range of 0.3-10 kgf / 2-30 kgf / 1-50 kgf. Automatic process tracing and hardness calculation. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Main features It is a stationary automatic hardness tester according to Vickers ADL HV-10/30/50 for measuring the hardness of samples made of metals and alloys according to standards.The reduced friction loading mechanism ensures high test accuracy. It is possible to measure the hardness of thin samples, samples with coatings, samples with heat-treated and impregnated surfaces.
A large display panel with membrane keyboard to set the test parameters (load value, hold time) and display the current test step and the instant value of the operating parameter during the test. Adjust the brightness of the backlight.
Automatic loading, holding and removal of the load are available. Process trace analysis using an instrument-mounted eyepiece-micrometer with 20x and 10x magnification. supply of markers to the corners of the print by turning a special wheel, automatic calculation of the hardness and display of the value on the screen.
The hardness tester can be supplied with a digital camera and BVHT P-version software to measure and calculate the hardness in a computer program.
A unique offering of the company is the production of hardness testing blocks measurements from customers’ materials, including stainless steel, cast iron, copper and aluminum alloys.
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
