| IPS-13 SERIES SINGLE CHANNEL SYRINGE PUMPS | ||
| IPS-13 | ||
   |

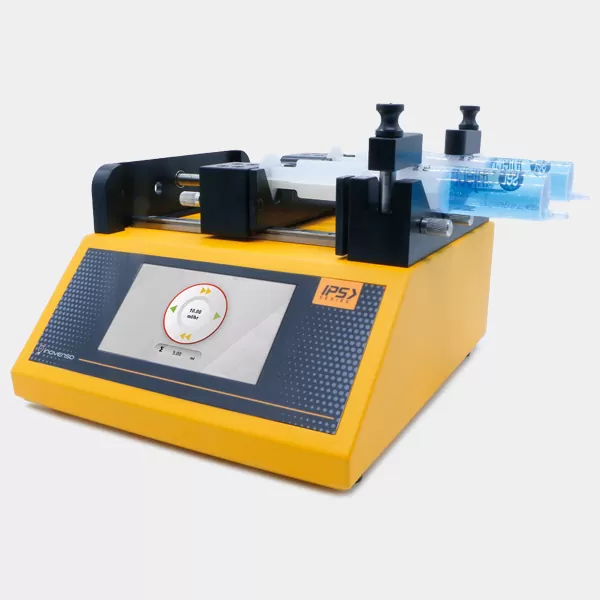

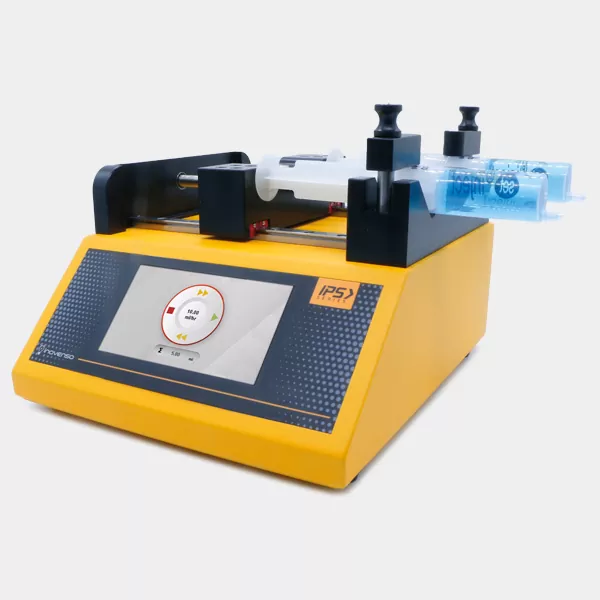

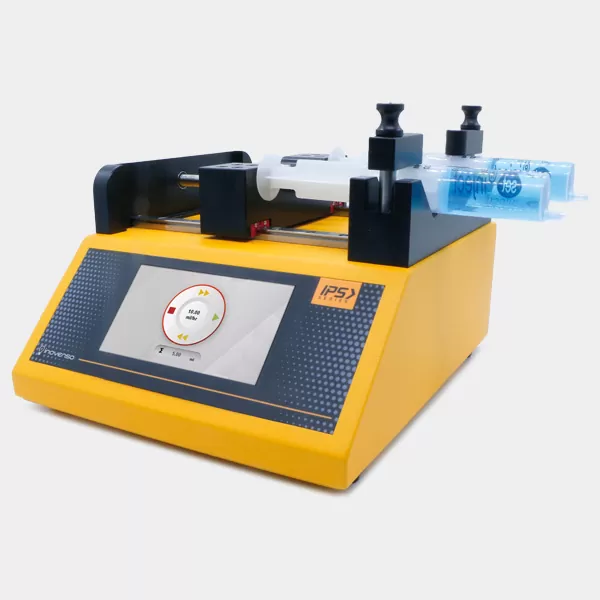

IPS-13 Syringe Pump The IPS-13 Syringe Pump is a highly versatile and precision-engineered device designed to meet the diverse fluid handling needs across various industries. With its advanced features and robust construction, the IPS-13 offers reliable performance and precise control over fluid delivery processes. |
|
| Key Features: • Interdependent Syringe Channels: The IPS-13 features two interdependent syringe channels, allowing for simultaneous and coordinated fluid handling operations. This feature enhances efficiency and flexibility in multi-channel applications. • Wide Syringe Compatibility: The IPS-13 accommodates syringes made of glass, plastic, and steel, offering versatility in fluid handling applications. It supports syringes ranging from Hamilton 0.5 μl to Monoject 140 ml, providing flexibility to users for different volume requirements. • Precise Flow Control: With a broad flow rate range from 17.89 picoliters per minute to 121.51 milliliters per minute, the IPS-13 ensures accurate and consistent fluid delivery. Its stepper motor, combined with a microcontroller featuring Microstep Drive technology, enables precise control over flow rates, guaranteeing reliable performance in various tasks. • Intuitive Interface: Equipped with a 4.3-inch Resistive Touch TFT LCD screen and powered by user-friendly microcontroller software, the IPS-13 offers an intuitive interface for easy programming and monitoring. Users can adjust flow rates and other parameters effortlessly, enhancing operational efficiency. • Adaptive Pumping: The IPS-13 allows for adjustable flow rates even during the pumping process, enabling users to fine-tune parameters as needed for optimal performance. This adaptability ensures versatility in handling diverse fluid handling tasks with precision and control.Technical Specifications: • Motor Type: Stepper Motor • Linear Force Connectors: No • Recipe Save-Recall: Yes (Wi-Fi optional) • Power Supply: 12 VDC 1A (110-240 VAC adapter included) • Dimensions: Width (W): 200 mm, Length (L): 250 mm, Height (H): 143 mm • Weight: 2.9 kgEnvironmental Specifications: • Operating Temperature: Between -10°C and 50°C • Storage Temperature: Between -30°C and 85°C • Operating Humidity: RH 10% – RH 90% (not condensed) • Storage Humidity: RH 10% – RH 90% (not condensed)Additional Features: • Double Channel design for simultaneous operation • Wi-Fi connectivity (optional) |
||
|
||
| IPS-13R | ||
| IPS-13R Syringe Pump The IPS-13R Syringe Pump is an advanced dual-channel device designed to fulfill complex fluid handling requirements across various industries. With its precision engineering and innovative features, the IPS-13R ensures reliable performance and precise control over fluid delivery processes.Key Features: • Interdependent Syringe Channels: Equipped with two interdependent syringe channels, the IPS-13R enables simultaneous and coordinated fluid handling operations, optimizing efficiency and flexibility in multi-channel applications. • Wide Syringe Compatibility: The IPS-13R supports a wide range of syringe types including glass, plastic, and steel. It accommodates syringes from Hamilton 0.5 μl (ID: 0.103mm) to Monoject 140 ml (ID: 38mm), providing versatility to meet various volume requirements. • Precise Flow Control: With a comprehensive flow rate range from 17.89 picoliters per minute to 121.51 milliliters per minute, the IPS-13R ensures precise and consistent fluid delivery. Its stepper motor, coupled with a microcontroller featuring Microstep Drive technology, allows for accurate flow rate control with a resolution of 357 nm/μstep. • Intuitive Interface: The IPS-13R is equipped with a 4.3-inch Resistive Touch TFT LCD screen and intuitive microcontroller software, offering users a user-friendly interface for easy programming and monitoring. Users can adjust flow rates and other parameters effortlessly, enhancing operational efficiency. • Adaptive Pumping: Users can adjust flow rates even during the pumping process, enabling fine-tuning of parameters for optimal performance. This adaptive capability ensures precise handling of fluid handling tasks with flexibility and control.Technical Specifications: • Motor Type: Stepper Motor • Linear Force Connectors: No • Recipe Save-Recall: Yes (Wi-Fi optional) • Power Supply: 12 VDC 1A (110-240 VAC adapter included) • Dimensions: Width (W): 211 mm, Length (L): 250 mm, Height (H): 143 mm • Weight: 3.2 kgEnvironmental Specifications: • Operating Temperature: Between -10°C and 50°C • Storage Temperature: Between -30°C and 85°C • Operating Humidity: RH 10% – RH 90% (not condensed) • Storage Humidity: RH 10% – RH 90% (not condensed) Additional Features: |
   |
|
|
||
| IPS-13S | ||
   |
IPS-13S Syringe Pump The IPS-13S Syringe Pump is a sophisticated dual-channel device designed to meet the complex fluid handling requirements in various industries. With its advanced features and precision engineering, the IPS-13S ensures reliable performance and precise control over fluid delivery processes.Key Features: • Interdependent Syringe Channels: Equipped with two interdependent syringe channels, the IPS-13S allows for simultaneous and coordinated fluid handling operations. This feature enhances efficiency and flexibility in multi-channel applications. Wide Syringe Compatibility: The IPS-13S supports a wide range of syringe types including glass, plastic, and steel. It accommodates syringes from Hamilton 0.5 μl (ID: 0.103mm) to Monoject 140 ml (ID: 38mm), providing versatility to meet various volume requirements. • Precise Flow Control: With a comprehensive flow rate range from 17.89 picoliters per minute to 121.51 milliliters per minute, the IPS-13S ensures precise and consistent fluid delivery. Its stepper motor, combined with a microcontroller featuring Microstep Drive technology, allows for accurate flow rate control with a resolution of 357 nm/μstep. • Intuitive Interface: The IPS-13S is equipped with a 4.3-inch Resistive Touch TFT LCD screen and intuitive microcontroller software, offering users a user-friendly interface for easy programming and monitoring. Users can adjust flow rates and other parameters effortlessly, enhancing operational efficiency. • Adaptive Pumping: Users can adjust flow rates even during the pumping process, enabling fine-tuning of parameters for optimal performance. This adaptive capability ensures precise handling of fluid handling tasks with flexibility and control.Technical Specifications: • Motor Type: Stepper Motor • Linear Force Connectors: No • Recipe Save-Recall: Yes (Wi-Fi optional) • Power Supply: 12 VDC 1A (110-240 VAC adapter included) • Dimensions: Width (W): 200 mm, Length (L): 250 mm, Height (H): 143 mm • Weight: 2.9 kgEnvironmental Specifications: • Operating Temperature: Between -10°C and 50°C • Storage Temperature: Between -30°C and 85°C • Operating Humidity: RH 10% – RH 90% (not condensed) • Storage Humidity: RH 10% – RH 90% (not condensed) Additional Features: |
|
|
||
| IPS-13RS | ||
| IPS-13RS Syringe Pump
The IPS-13RS Syringe Pump is an advanced dual-channel device designed to meet the complex fluid handling requirements in various industries. With its precision engineering and innovative features, the IPS-13RS ensures reliable performance and precise control over fluid delivery processes. Key Features: Technical Specifications: Environmental Specifications: Additional Features: |
   |
|
|
||
เครื่องปั๊มสารละลายอัตโนมัติ (SINGLE CHANNEL SYRINGE PUMPS) ยี่ห้อ Inovenso รุ่น IPS-13 SERIES (SIT849)
หัวปั๊มไซริงค์ (Syringes)
– ความจุ: 2 ช่องปั๊ม (อิสระจากกัน)
– ประเภทไซริงค์ที่รองรับ: แก้ว, พลาสติก, เหล็ก
– ขนาดเล็กสุด: 10 ไมโครลิตร (OD 0.038 มม.)
– ขนาดใหญ่สุด: 140 มิลลิลิตร (OD 38 มม.)
อัตราการไหล (Flow Rate)
– อัตราต่ำสุด: 17.55 พิกโคลิตร/นาที (Hamilton 0.5 μl)
– อัตราสูงสุด: 12257 มิลลิลิตร/นาที (140 มล. Luer-lock Syringe)
– ประเภทมอเตอร์: Stepper Motor
– ตัวควบคุมมอเตอร์: ไมโครคอนโทรลเลอร์พร้อม Microstep Drive
– ความละเอียดขั้นตอน (การเคลื่อนที่/ไมโครสเต็ป): 1657 steps/μl
อัตราความเร็ว (Step Rate)
– ต่ำสุด: 10 steps/step
– สูงสุด: 200 steps/step
อัตราความเร็วเชิงเส้น (Linear Speed Rate)
– ต่ำสุด: 2.34 ไมโครเมตร/นาที
– สูงสุด: 10134 ไมโครเมตร/นาที
– แรงเชิงเส้น (Linear Force): 20 กก. (พร้อมไซริงค์ 15 กก.)
– พอร์ตเชื่อมต่อ: RS-485 (ไม่บังคับ)
– การบันทึก/เรียกใช้สูตร: ไม่มี
– แหล่งจ่ายไฟ: 12 V DC, 3A (มีอะแดปเตอร์ 12 V DC, 3A มาให้)
– ขนาด (กว้าง x ยาว x สูง): 110 x 255 x 142 มม.
– น้ำหนัก: 2.9 กก.
– เป็นระบบปั๊มแบบ 2 ช่องปั๊ม (Dual Channel)
– หน้าจอสัมผัสแบบ Resistive TFT LCD ขนาด 4.3 นิ้ว
– มีซอฟต์แวร์ควบคุมด้วยไมโครคอนโทรลเลอร์
– มีอินเทอร์เฟซที่ใช้งานง่าย
– สามารถปั๊มสารได้อย่างแม่นยำสูง
– สามารถปรับอัตราการไหลได้ขณะที่กำลังทำงานอยู่
