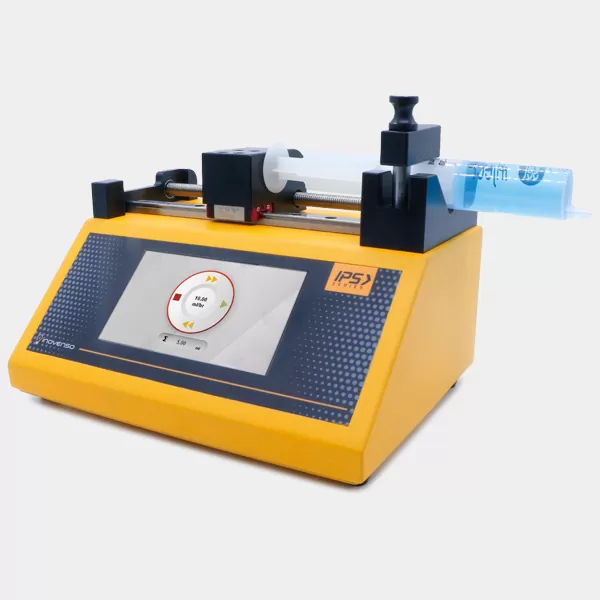

| IPS-12 SERIES SINGLE CHANNEL SYRINGE PUMPS | ||
| IPS-12 | ||
   |
The IPS-12 is a versatile and programmable single-channel pump designed to meet a wide range of fluid handling needs. With its robust capabilities and precision performance, it stands as a reliable solution for various applications in research, pharmaceuticals, and industrial processes. | |
| Key Features: • Wide Flow Rate Range: The IPS-12 offers a broad flow rate range, from 17.89 picoliters per minute to 121.51 milliliters per minute. Whether handling small volumes with a Hamilton 0.5 μl syringe or larger volumes with a 140 ml Monoject Syringe, this pump delivers consistent and accurate flow rates across a diverse range of syringe sizes and materials (glass, plastic, steel). • Intuitive Interface: Equipped with a 4.3-inch Resistive Touch TFT LCD screen and powered by microcontroller software, the IPS-12 provides a user-friendly interface. This interface facilitates easy programming and monitoring of pumping parameters, enhancing efficiency and convenience in operation. • Precise Pumping: Featuring a stepper motor and microcontroller with Microstep Drive, the IPS-12 ensures high precision in fluid delivery. With a step resolution of 357 nm/μstep and adjustable flow rates even during the process, users can achieve precise control over fluid handling tasks, meeting the most demanding requirements with confidence. • Versatile Connectivity: The IPS-12 offers flexible connectivity options, including optional Wi-Fi capability. This allows for remote monitoring and control, expanding the pump’s usability and accessibility in diverse settings.Technical Specifications: • Motor Type: Stepper Motor • Linear Force Connectors: Yes • Recipe Save-Recall: Yes • Power Supply: 12 VDC 1A (110-240 VAC adapter included) • Dimensions: Width (W): 200 mm, Length (L): 170 • mm, Height (H): 137 mm Weight: 2.1 kgEnvironmental Specifications: • Operating Temperature: Between -10°C and 50°C • Storage Temperature: Between -30°C and 85°C • Operating Humidity: RH 10% – RH 90% (not condensed) • Storage Humidity: RH 10% – RH 90% (not condensed) |
||
|
||
| IPS-12R | ||
| IPS-12R Syringe Pump The IPS-12R Syringe Pump is a highly versatile and precision-engineered device designed to meet the demanding requirements of fluid handling across various industries. With its advanced features and robust construction, the IPS-12R offers unparalleled reliability and performance.Key Features: • Wide Range of Syringe Compatibility: The IPS-12R accommodates syringes of different materials, including glass, plastic, and steel. Its adjustable configuration allows for the use of syringes ranging from Hamilton 0.5 μl to Monoject 140 ml, providing flexibility for various applications. • Precise Flow Control: With a wide flow rate range from 17.89 picoliters per minute to 121.51 milliliters per minute, the IPS-12R ensures accurate and consistent fluid delivery. Its stepper motor, combined with a microcontroller featuring Microstep Drive technology, enables precise control over flow rates, guaranteeing reliable performance even in the most critical tasks. • Intuitive Interface: Equipped with a 4.3-inch Resistive Touch TFT LCD screen and powered by user-friendly microcontroller software, the IPS-12R offers an intuitive interface for easy programming and monitoring. Users can adjust flow rates and other parameters effortlessly, enhancing operational efficiency. • Adaptive Pumping: The IPS-12R features adjustable flow rates even during the pumping process, allowing users to fine-tune parameters as needed for optimal performance. This adaptability ensures versatility in handling diverse fluid handling tasks with precision and control.Technical Specifications: • Motor Type: Stepper Motor • Linear Force Connectors: Yes • Recipe Save-Recall: Yes (Wi-Fi optional) • Power Supply: 12 VDC 1A (110-240 VAC adapter included) • Dimensions: Width (W): 200 mm, Length (L): 170 mm, • Height (H): 137 mm • Weight: 2.2 kgEnvironmental Specifications: • Operating Temperature: Between -10°C and 50°C • Storage Temperature: Between -30°C and 85°C • Operating Humidity: RH 10% – RH 90% (not condensed) • Storage Humidity: RH 10% – RH 90% (not condensed) Additional Features: With its comprehensive features, precise performance, and user-friendly design, the IPS-12R Syringe Pump stands as a reliable solution for fluid handling needs in various industries, ensuring efficiency, accuracy, and control in every operation. |
  |
|
|
||
| IPS-12S | ||
  |
IPS-12S Syringe Pump The IPS-12S Syringe Pump is a versatile and precision-engineered device designed to meet the diverse fluid handling needs across various industries. With its advanced features and robust construction, the IPS-12S offers reliable performance and precise control over fluid delivery processes.Key Features: • Wide Syringe Compatibility: The IPS-12S accommodates syringes made of glass, plastic, and steel, offering versatility in fluid handling applications. It supports syringes ranging from Hamilton 0.5 μl to Monoject 140 ml, providing flexibility to users for different volume requirements. • Precise Flow Control: With a broad flow rate range from 17.89 picoliters per minute to 121.51 milliliters per minute, the IPS-12S ensures accurate and consistent fluid delivery. Its stepper motor, combined with a microcontroller featuring Microstep Drive technology, enables precise control over flow rates, guaranteeing reliable performance in various tasks. • Intuitive Interface: Equipped with a 4.3-inch Resistive Touch TFT LCD screen and powered by user-friendly microcontroller software, the IPS-12S offers an intuitive interface for easy programming and monitoring. Users can adjust flow rates and other parameters effortlessly, enhancing operational efficiency. • Adaptive Pumping: The IPS-12S allows for adjustable flow rates even during the pumping process, enabling users to fine-tune parameters as needed for optimal performance. This adaptability ensures versatility in handling diverse fluid handling tasks with precision and control. • 5 Steps Operation Mode: The IPS-12S offers a 5 Steps Operation Mode, allowing users to program multi-step pumping processes with ease and precision. • Saving and Recalling Recipes: Users can save and recall up to 5 recipes, streamlining operations and ensuring consistent performance. • Repeating Recipes: The IPS-12S enables users to repeat recipes up to 50 cycles, providing flexibility and efficiency in repetitive tasks.Technical Specifications: • Motor Type: Stepper Motor • Linear Force Connectors: Yes • Recipe Save-Recall: Yes (Wi-Fi optional) • Power Supply: 12 VDC 1A (110-240 VAC adapter included) • Dimensions: Width (W): 200 mm, Length (L): 170 mm, Height (H): 137 mm • Weight: 2.1 kgEnvironmental Specifications: • Operating Temperature: Between -10°C and 50°C • Storage Temperature: Between -30°C and 85°C • Operating Humidity: RH 10% – RH 90% (not condensed) • Storage Humidity: RH 10% – RH 90% (not condensed) Additional Features: |
|
|
||
| IPS-12RS | ||
| IPS-12RS Syringe Pump
The IPS-12RS Syringe Pump is a versatile and precision-engineered device designed to meet the diverse fluid handling needs across various industries. With its advanced features and robust construction, the IPS-12RS offers unparalleled reliability and performance. Key Features: Technical Specifications: Environmental Specifications: Additional Features: |
 |
|
|
||
เครื่องปั๊มสารละลายอัตโนมัติ (SINGLE CHANNEL SYRINGE PUMPS) ยี่ห้อ Inovenso รุ่น IPS-12 SERIES (SIT848)
– โหมดการทำงาน: สามารถทำงานได้ทั้งแบบฉีด (infusion) และดูดกลับ (withdrawal)
– หน้าจอแสดงผล: หน้าจอสัมผัสแบบ Resistive TFT LCD ขนาด 4.3 นิ้ว
– การควบคุม: ควบคุมด้วยไมโครคอนโทรลเลอร์ (Microcontroller) พร้อมซอฟต์แวร์ที่ใช้งานง่าย (User-friendly interface)
– ความแม่นยำ: สามารถปั๊มสารได้อย่างแม่นยำสูง (High precise pumping)
– การปรับอัตราการไหล: สามารถปรับอัตราการไหลได้อย่างสม่ำเสมอในระหว่างกระบวนการ (Adjustable flow rate even during process)
– ขั้นตอนการทำงาน: มี 5 ขั้นตอนการทำงาน และสามารถบันทึกและเรียกใช้สูตรการทำงานซ้ำได้ถึง 50 รอบ (Cycles)
– ไซรินจ์ (Syringe): ใช้ไซรินจ์พลาสติกหรือแก้ว สามารถรองรับไซรินจ์ขนาดเล็กสุด 0.5 µl และใหญ่สุด 140 ml
– ความจุ (Capacity): ไซรินจ์แก้วหรือพลาสติก
– ประเภท (Type): Glass, plastic, steel
– ขนาดเล็กสุด (Min Size): Hamilton 0.5 µl (0.103 mm)
– ขนาดใหญ่สุด (Max Size): Monoject 140 ml (52.38 mm)
– อัตราการไหลต่ำสุด (Flow Rate Min): 0.149 µl/min (Syringe 0.5 µl)
– อัตราการไหลสูงสุด (Flow Rate Max): 173.0 ml/min (Syringe 140 ml)
– ประเภทมอเตอร์ (Motor Type): Stepper motor
– ตัวควบคุมมอเตอร์ (Motor Drive Controller): Microcontroller with Microstep Drive
– ความละเอียดการเคลื่อนที่ (Step Resolution/Travel Microstep): 167 nm/step
– แรงเชิงเส้น (Linear Force): 28 kg
– ตัวเชื่อมต่อ (Connectors): I/O (Optional)
– แรงดันไฟฟ้า (Power Supply): 12 VDC, 1A (110-240 VAC adapter included)
– ขนาด (Dimensions): 140 x 275 x 157 mm
– น้ำหนัก (Weight): 2.2 kg
| Inovenso IPS-12 series, Single channel syringe pump, Syringe infusion pump, Laboratory syringe pump, High precision syringe pump, Microfluidics syringe pump, IPS-12 infusion pump, Withdrawal mode syringe pump, Programmable syringe pump, Flow rate control pump, เครื่องปั๊มสารละลาย Inovenso IPS-12, เครื่องปั๊มสารละลายอัตโนมัติ, ปั๊มสารละลายแบบเข็มฉีด, ปั๊มไซริงค์แบบช่องเดียว, เครื่องปั๊มสารละลายความแม่นยำสูง, เครื่องปั๊มสารละลายสำหรับห้องปฏิบัติการ, เครื่องปั๊มสารละลายแบบตั้งโปรแกรมได้, เครื่องปั๊มสารละลาย microfluidics, Syringe pump, Inovenso IPS-12, Infusion pump, Syringe pump manufacturer, Syringe pump supplier, การใช้งานในห้องปฏิบัติการ, การใช้งานในงานไมโครฟลูอิดิกส์, Automated syringe pump, Syringe pump price, Syringe pump for sale, Syringe pump system, เครื่องปั๊มสารละลาย, เครื่องปั๊มกระบอกฉีดยา, เครื่องปั๊มสารเคมี, เครื่องปั๊มไซริงค์, เครื่องปั๊ม Inovenso, sit848
28 orders in the last 30 days.
Technical Datasheet
