What is vertical ring die pellet machine?
Vertical ring die pellet machine is equipped with strong pressure being suitable for pressing the material which is hard to be bonded and shaped. The vertical ring die pellet machine is widely used in the power station, wood factory, feed factory, toy factory, chemistry factory, thus became the ideal equipment for compressing density forming with small investment, fast returns and no risks. The vertical ring die pellet machine can treat various kinds of materials: rice hull, pinus sylvestris; leftovers of the kinds of timbers as branches, trunk; many kinds of crop hulls and other raw materials.
(vertical ring die pellet machines)
This vertical ring die pellet machine is also called rice husk pellet machine or light-weight material with pellet mill. Because this vertical ring die pellet mill is more suitable for managing the materials with light weight, such as, rice hull, grass with light weight, straw, melon and fruit hull and the material which is not easy to form. This rice husk pellet machine is featured with compact structure, elegant appearance, high output, low electric consumption, simple maintenance, convenience to operate.
Parameters of vertical ring die pellet machine
| Model | VPM508-I | VPM508-II | VPM510 | VPM630 |
|---|---|---|---|---|
| Power (kw) | 55 | 75 | 110 | 132 |
| Density (mm) | 2133*920*1389 | 2400*1300*1800 | 1800*1100*1700 | 1800*1100*1700 |
| Weight (kg) | 2586 | 2908 | 3135 | 4500 |
| Designed output(kg) | 600~700 | 1000~1200 | 1500~2000 | 2000~2500 |
| Pellet diameter (mm) | ¢8~¢9 | ¢8~¢9 | ¢8~¢9 | ¢8~¢9 |
| Pellet forming rate | 98% | 98% | 98% | 98% |
| Pellet length (mm) | 10~35 | 10~35 | 10~35 | 10~35 |
| Rice husk capacity(kg/h) | 500 | 900~1000 | 2000 | 2000 |

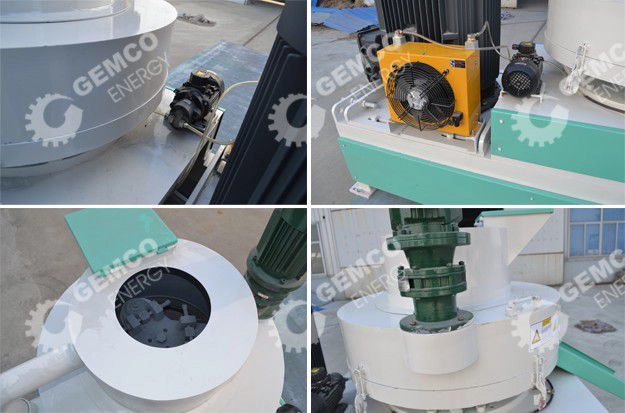

Detailed drawing of vertical ring die pellet machine
2 tons / hour rice husk pellet processing plant
