เครื่องวัดความหนาแบบอัลตราโซนิก (Ultrasonic thickness gauge) ยี่ห้อ Adelix รุ่น ADL-UT20 (SIT877)

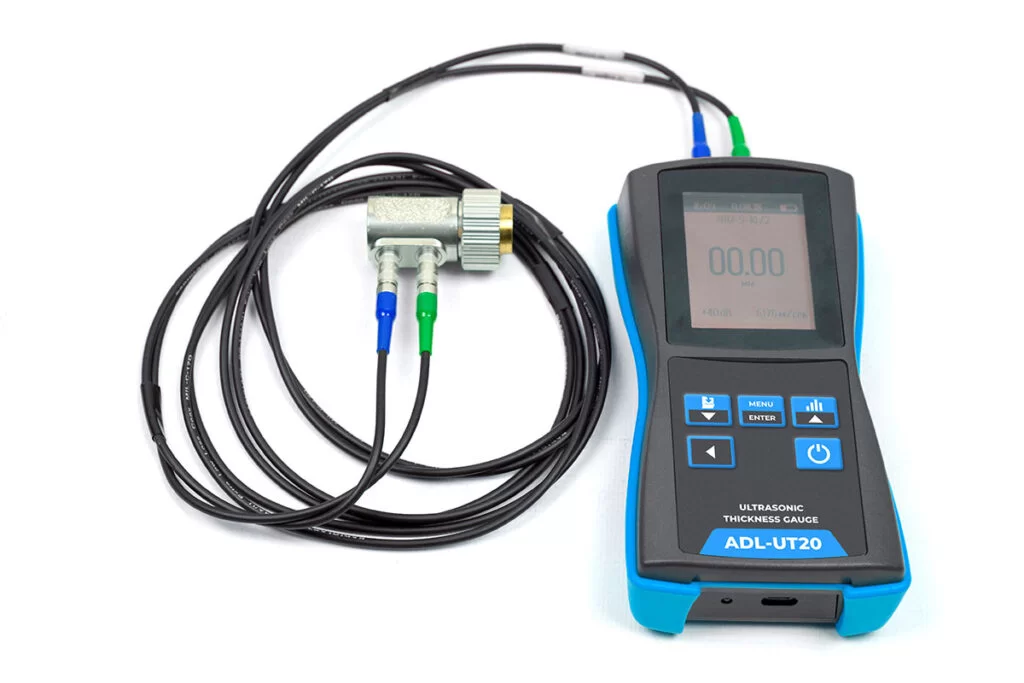

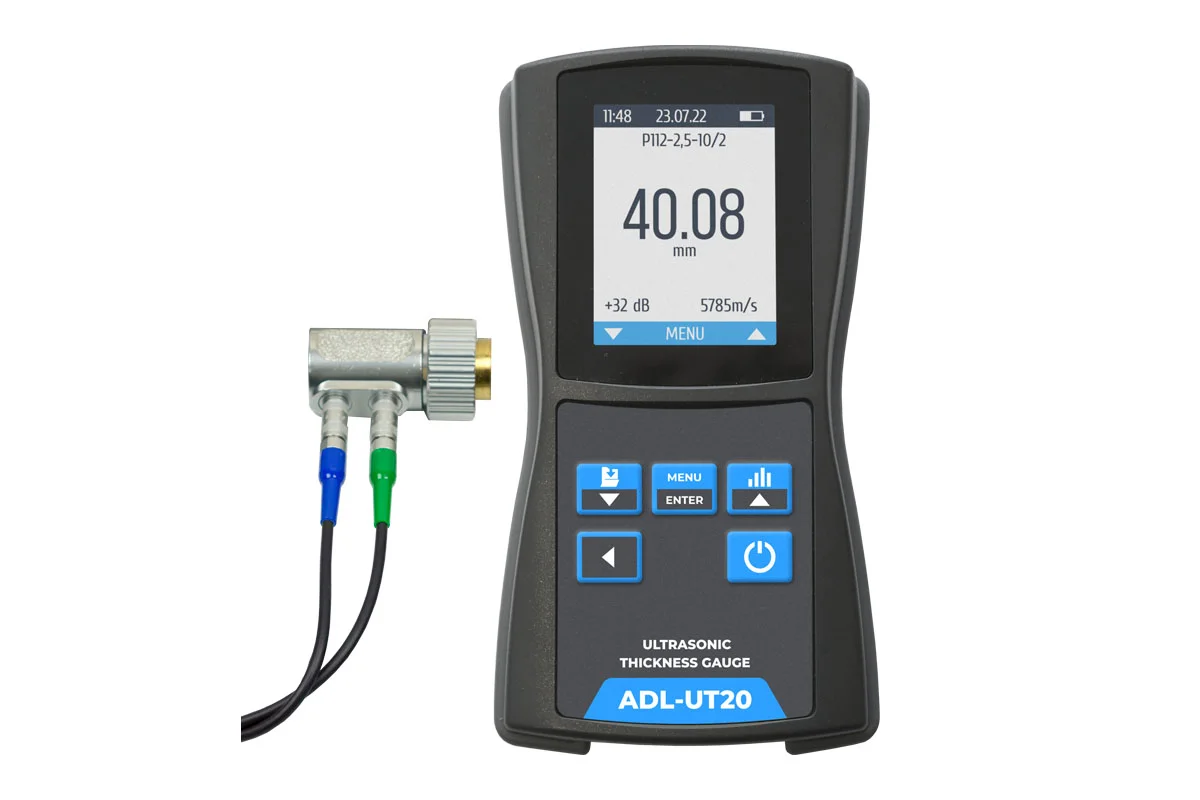

Ultrasonic thickness gauge ADL-UT20 can work with any Dual Element Transducers operating, as well as high-temperature transducers operating at frequencies from 2.5 MHz to 10 MHz, their use provides high reliability of results in laboratory, workshop and field conditions.

This model has a simple and intuitive interface.

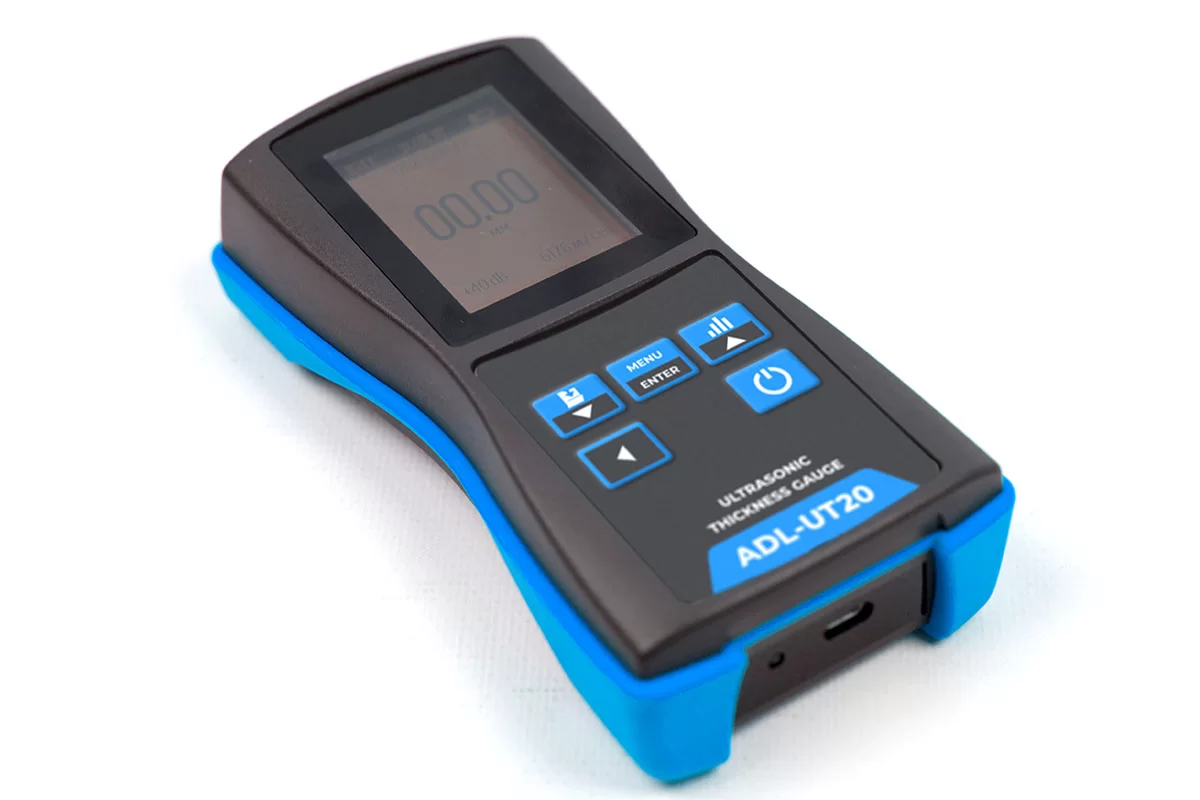

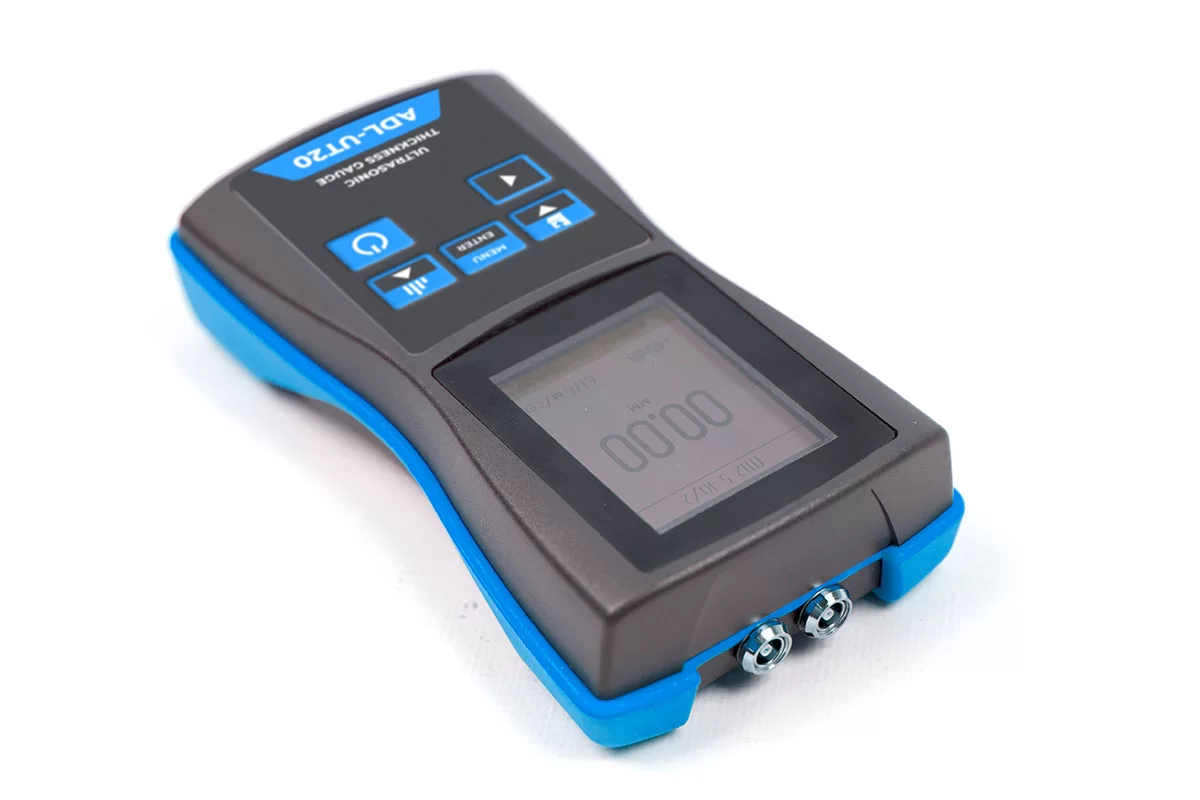

Lightweight shockproof case of this thickness gauge provides dust and moisture protection in various operating conditions, resistance to drops from a height of up to 2 meters.

The ADL-UT20 ultrasonic thickness gauge is often used to quick measurement the thickness of metal and non-metal products such as: sheets, tanks, pipes, pipelines, bridge, hull, transport and other structures, during their operation to determine the corrosion state or after their manufacture.

Widely applicable to energy, metallurgical, machine building, shipbuilding, transport and other industrial enterprises.

Features of ultrasonic thickness gauge ADL-UT20:
• high sensitivity;
• convenience in work;
• intuitively simple interface;
• the possibility of manual and automatic sensitivity adjustment;
• measuring range from 0.8 to 300 mm;
• connection of high-temperature converters up to 350 °С;
• the ability to connect any number of converters;
• convenient calibration by thickness or by speed and saving calibrations in the me-mory of the device;
• possibility of recording measurement results and data transfer to a computer;
bright color screen;
• large memory with over 5000 measurements;
• built-in Li-on battery provides up to 8-9 hours of operation.

When turned off, the device remembers the settings for the transducer (correction of the zero setting, gain, set ultrasonic speed in the material and levels). This device also has the function of setting up transducers by ensuring the established metrological characteristics for them and saving these settings in the memory of the device.

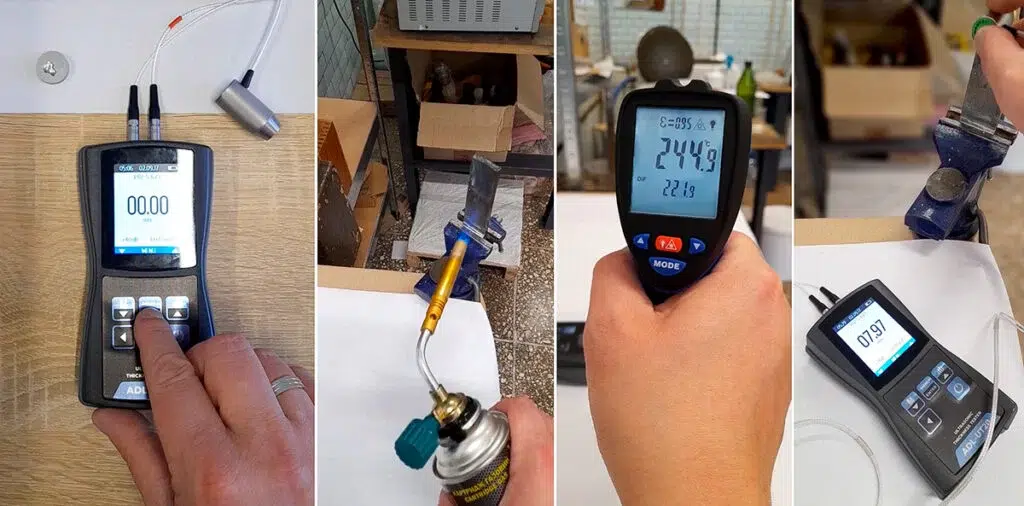

One of the advantages of the device is the work with specialized high-temperature sensors, which allow one-sided control of products with a surface temperature of up to 350°C.

The objects of control can be metal pipes or tanks without taking them out of service, various steam pipelines, metal bars and cast products before they are cooled.
