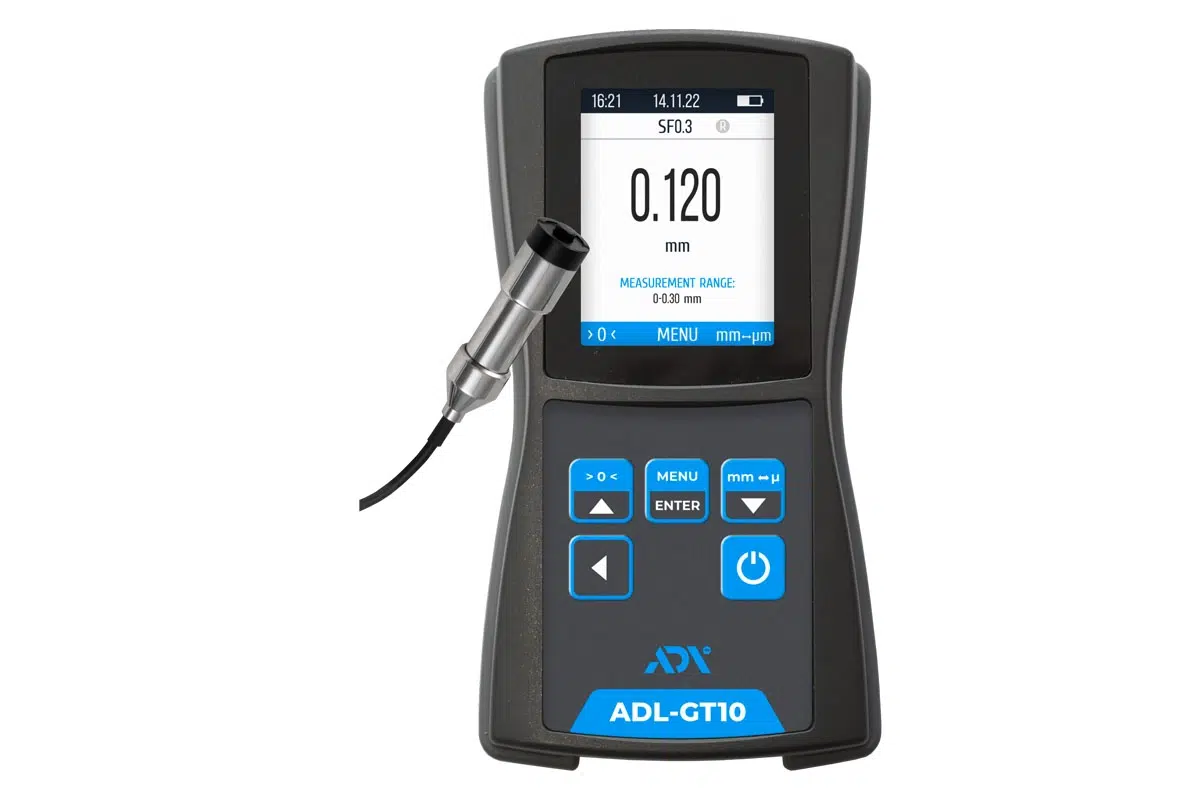

เครื่องวัดความหนาสีและสารเคลือบ (Coating Thickness Gauge) ยี่ห้อ Adelix รุ่น ADL-GT10 (SIT874)

ADL VE41 Videoendoscope – a flexible controlled endoscope with an image processing and video recording unit movably mounted on a joystick.

The thickness gauge has the ability to individually calibrate inductive and parametric transducers for the characteristics of specific bases and coatings of control.

The device is designed for use in laboratory and production conditions.

An important role in everyday use is also played by a shock-resistant ergonomic case with rubberized inserts and wear-resistant glass that protect the device from falls, accidental bumps and other physical impacts that can occur in a production environment.

Application area:
• Measurement of the thickness of galvanized coatings and paint coatings on steel substrates;
• Measurement of thickness of paint and varnish, polymeric and other dielectric coverings on the steel bases more than 0.5 mm thick;
• Measuring the thickness of insulating and electrically conductive non-ferromagnetic coatings on metal substrates;
• Measurement of thickness of galvanic coverings on electroconductive ferromagnetic alloys;
• Measurement of the thickness of dielectric coatings and electrically conductive non-ferromagnetic coatings on non-ferrous and ferrous metals;
• Measurement of the thickness of dielectric thick-layer coatings on magnetic, non-magnetic substrates, ferrous and non-ferrous metals;
• Surface roughness measurement;
• Measurement of temperature, humidity and a dew point.

Key benefits of the GT10 Coating Thickness Gauge.
• use of a combination of pulsed induction, eddy current parametric and phase digital methods for obtaining primary information;
• a wide range of wear-resistant transducers for various purposes with operation algorithms that exclude the effect of wear on the measurement error;
• friendly user interface for measurements and processing of results;
• the possibility of carrying out tolerance control and measurements with averaging;
• absence of temperature and time drift of readings;
• Possibility to control coatings on parts with roughness up to Rz=400 µm
• Possibility of individual calibration of inductive and parametric transducers according to the features of specific bases and control coatings;
auto-detection of the connected sensor;
• Possibility of storing calibrations and measurement results in non-volatile memory of the instrument with subsequent transfer to a PC via USB for statistical processing and storage;
• automatic power off after the end of measurements;
• standard Lemo connectors
• color LCD display
• Built-in rechargeable battery provides up to 8 hours of continuous operation.
• dust-, moisture-proof shock-resistant case

Basic equipment:
• Measuring unit GT10
• Sensors according to the technical task of the Customer
• Measures for setting zero according to the technical specifications of the Customer
• Protective case;
• Manual;
• Charger with cable.
