GCBC series biomass briquette making machine is screw briquette press which is a popular type of biomass briquette machine because of the wide application of the final briquettes: used for heating or BBQ (barbeque) to replace coal in many countries.

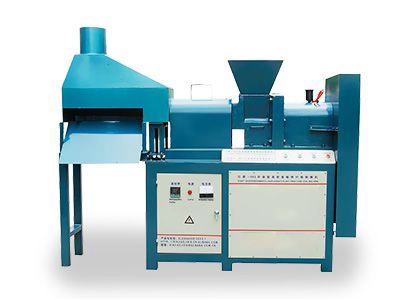

GCBC-I Briquetting Machine

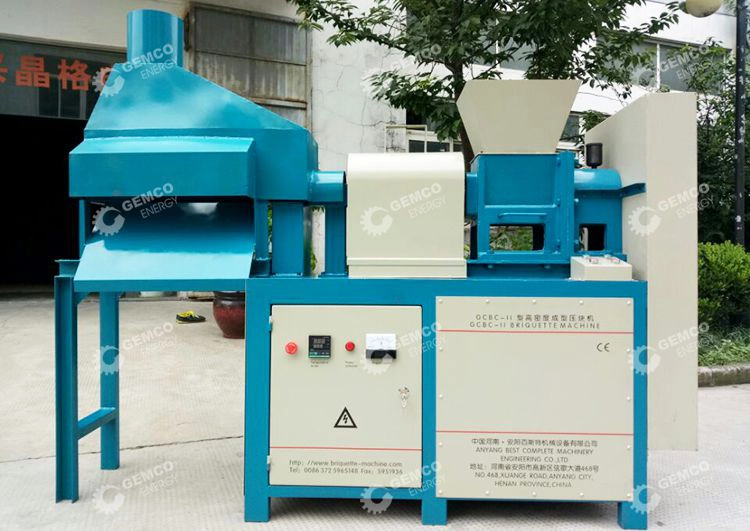

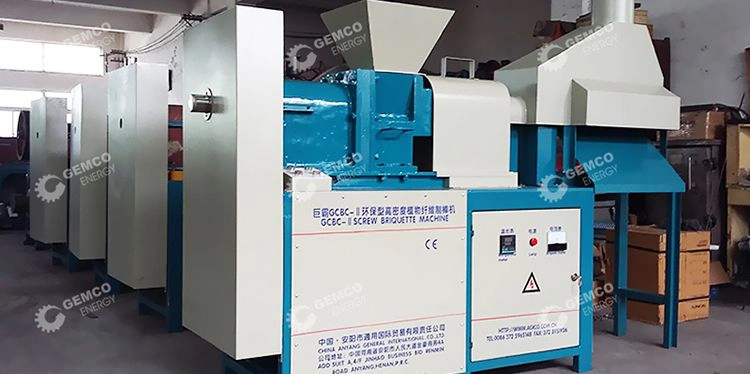

GCBC-II Briquetting Machine

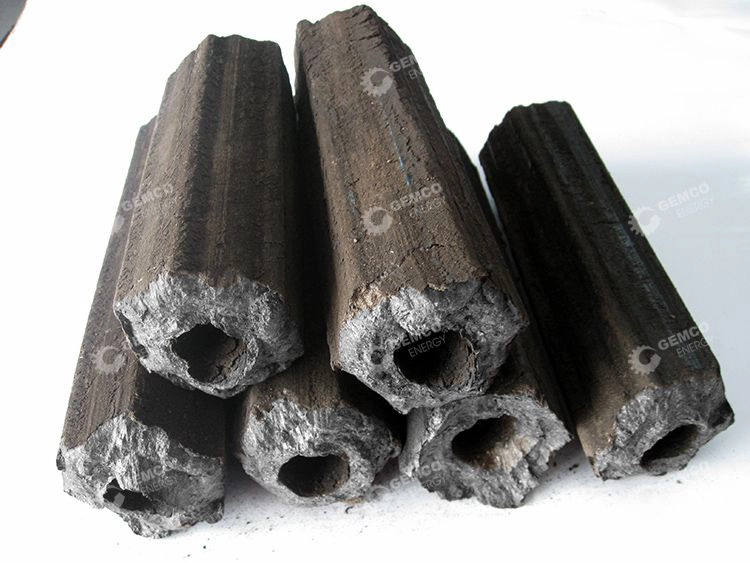

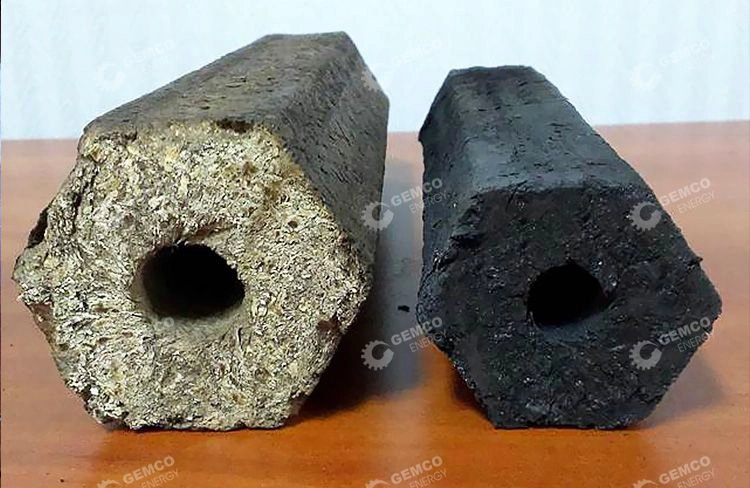

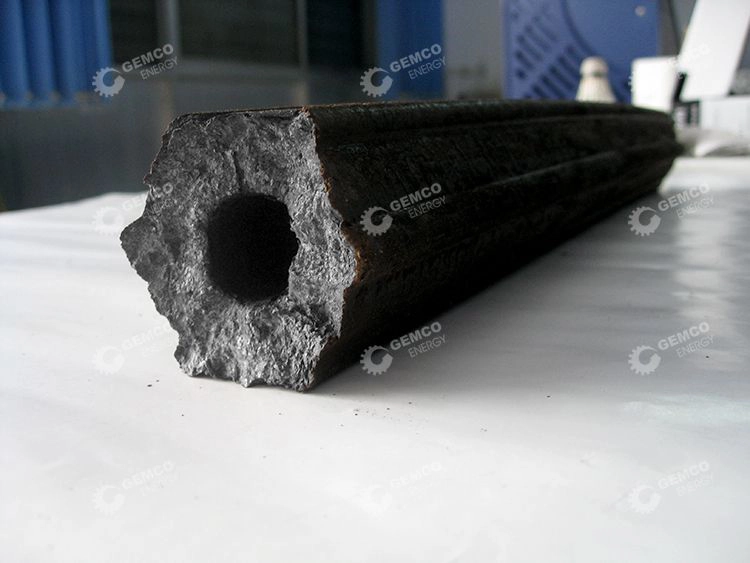

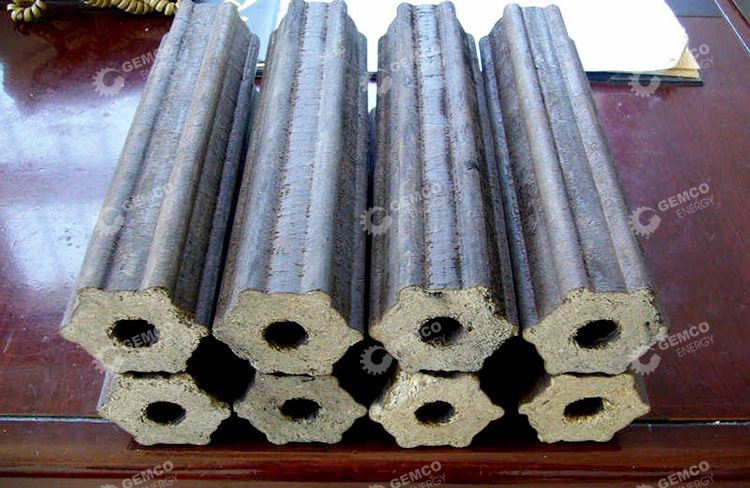

The screw design of this briquette machine makes it able to produce cylindrical or hexagon briquettes with hollow centre, so that the briquettes are easily and fully burned as well as easily piled up for storage and transportation. (Read more: How to Make Briquettes from Wood Shavings >>)
Technical Data of GCBC Screw Briquette Machine
| Model | GCBC- I | GCBC- II |
|---|---|---|
| Capacity (kg/h) | 180-210 | 300-350 |
| Motor Power (kw) | 15 | 18.5kw |
| Electric Heater (kw) | 2.2kw*2 | 2.2kw×2 |
| Life of the Inner Former | 1-2years | 1-2years |
| Size of Briquettes | Dia.50mm*L.480mm | Dia.60mm*L.500mm |
| Size of Inside Hole | Dia.16mm | Dia.16mm |
| Density of Briquettes | 1.3 g/cm3 | 1.3 g/cm3 |
| Weight (kg) | 700kg | 1000kg |
| Overall Dimension (mm) | 2700*600*1600 mm | 2000*600*1700 mm |
Raw Material for Screw Briquetting MachineMany agricultural wastes, forestry wastes and organic municipal waste can be used to make briquettes for energy use. The most common raw materials for briquetting has sawdust, wood chips, bamboo shavings, bagasse, cotton stalk, coconut shell, maize straw, wheat straw, rice straw, rice husk, peanut shell, sugarcane bagasse, twig, furfural residue, etc.  Bagasse Briquettes  Briquettes Made from Bagasse  Rice Straw Briquettes  Briquettes Made from Rice Straw  Sawdust Briquettes  Briquettes Made from Sawdust |
Advantages of GEMCO Screw Briquetting Machines?

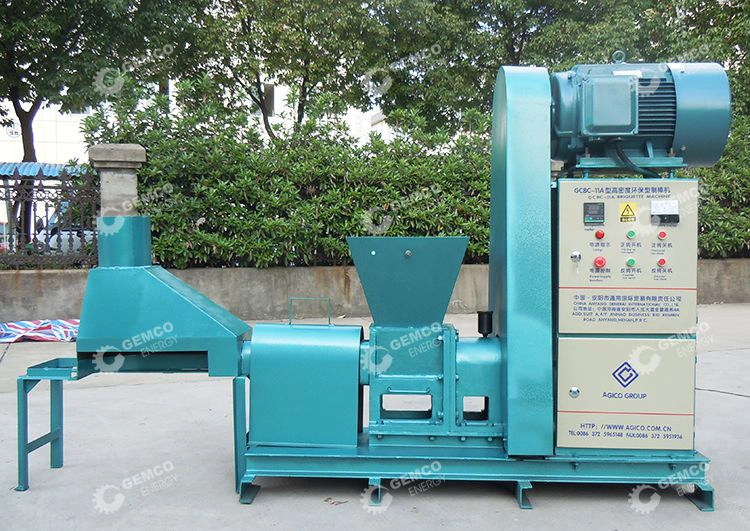

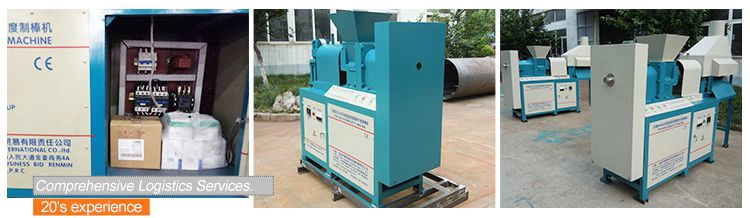

Screw Briquetting Machine for Sale
- No binder is needed in briquetting process, since the high temperature pressing process will soften the lignin inside the biomass and makes it adhesive.
- The briquettes made by this machine have regular shape, high density, easy to combust and durable to burn, no ash, etc. So the briquettes are welcomed by many users.
- The screw shaft, inner former and other key parts are made by high hardness alloy steel to have longer service life than those made by other manufacturers.
- The gear box is equipped with lubricating device so that the main part can be lubricated regularly.
- The machine also adopts auto-cutting system to cut the briquettes into uniform length automatically.
- It has low price and high quality, which makes it cost-effective.
Screw Briquette Press Manufacturer

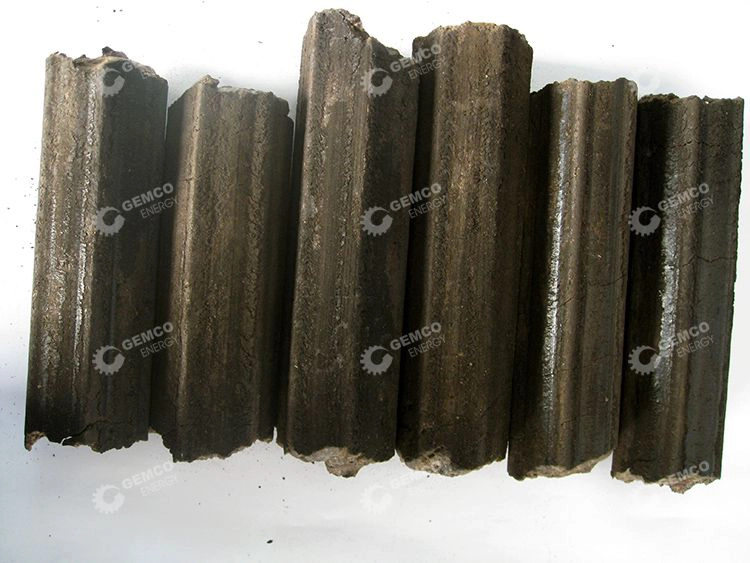

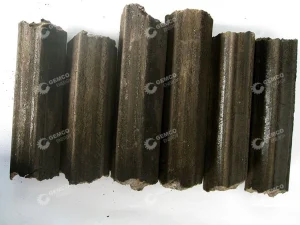

Screw Briquette Press ManufacturerGCBC Screw Briquette Press Briquetting Performance
