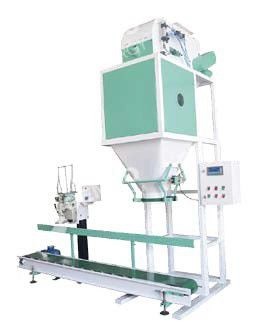

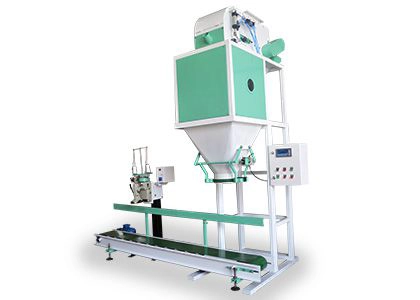

Pellet packing machine is used to weigh and pack pellets automatically. This packing machine is dedicated for pellet quantitative packing application field. It uses a free dropping feed system, fast and precise valves make the material feeding process frequent and stable. Material directly goes into the bag, no jam, no sticking.
 |
|
Composition: weighting system, conveying system, packing system and intelligent controller.
Specification of Pellet Packing Machine
| Precision | +/-0.2% |
|---|---|
| Packing speed | 100~200bags per hour |
| Weighing scale | 10kg-50kg per bag |
| Power Supply | 220Va.c and 4N-380Va.c |
| Power Dissipation | 1.5kW |
| Compressed Air | 0.4MPa0.6MPa |
| Compressed Air Consume | 0.5m3 per hour |
Below is the video of the commercial pellet packing machine in the 3.6-4.5t/h complete wood pellet line in Morocco. The capacity per bag is 15kg.
