+2/+6°C | -10/-20°C
Temperature range |
593 lt (20.94 cu ft)
Capacity |
|
72 x 85,5 x 203
External dimensions (WxDxH) |
TOUCH Electronic Controller |

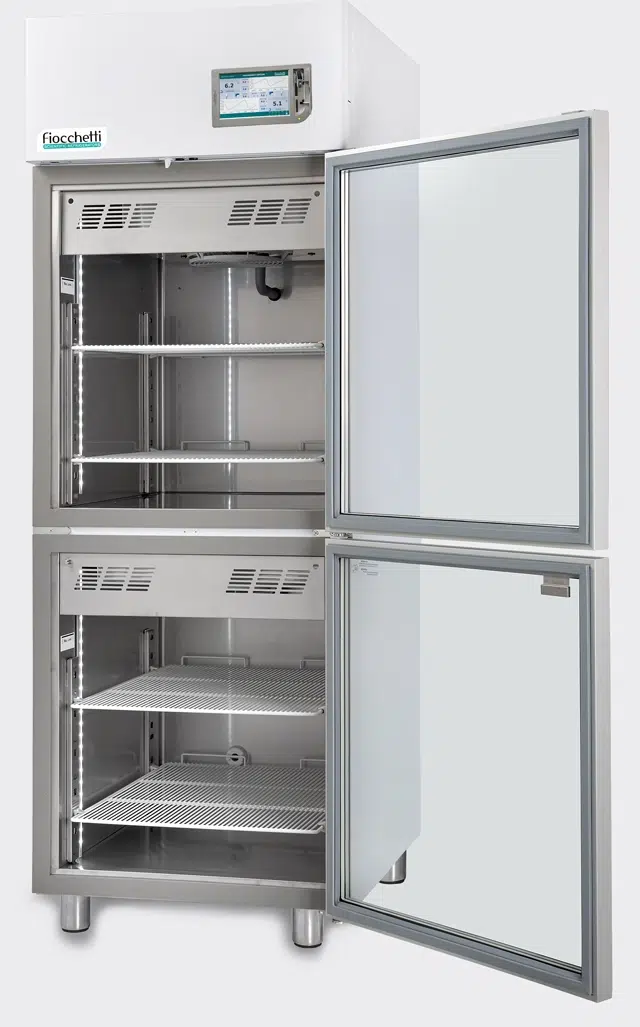

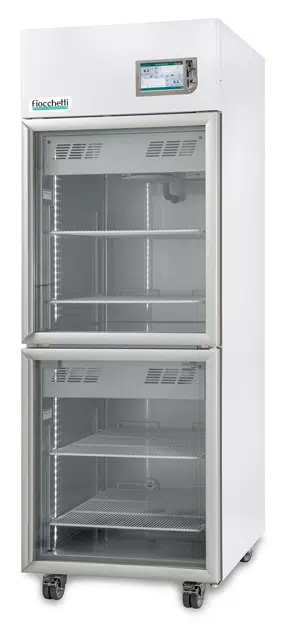

Combined refrigerator + freezer, certified for storing plasma, with two glass doors and double cooling unit, Touch screen display managing both chambers and data recording.
The medical device rated, combined refrigerator/freezers PLASMA-VISION 2T series, thanks to the two completely independent compartments, allow the simultaneous
storage of blood at +4 °C and plasma at -20°C.
Two solid doors and the customizable interior fittings enhance at best the preservation of material.
PLASMA-VISION 2T medical devices comply with the international standards in force and, thanks to the different capacities offered and the possibility of customizing the internal fittings, they adapt to the needs of small and large laboratories and transfusion departments.
The PLASMA-VISION 2T series includes Touch controller with graph and independent DMLP Touch board with backup battery for data recording and alarms even in the absence of power, external contacts for their remote control and RJ45 port, product temperature simulation probe and electric lock for access control. Fiocchetti plasma banks are Medical Devices complying with Directive 93/42/EEC (class IIa) and its amendment 2007/47/EEC and are registered in the MD Repertoire of the Italian Ministry of Health. They also comply with 2011/65/CE (RoHS).
|
STRUCTURE AND REFRIGERATION Inner dimensions: 60 x 68 x 70 / 60 x 68 x 74 cm Nominal capacity: 350+350 lt (12,36 + 12,36 cu ft) Net capacity : 620 l (21,89 cu ft) Insulation type: Insulation in PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection. Insulation thickness: 60 mm Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners. Nr 4 height adjustable feet included to grant maximum stability Interior lightning: Full LED, all lenght of inner chamber, with adjustable brightness Refrigeration type: Professional ventilated Defrost strong: Automatic, adaptive, with collection of condensate water Power consumption reduction with function Night & Day |
 |
|

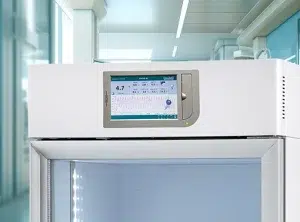

7″ FULL TOUCH SCREEN ELECTRONIC CONTROLLER Microprocessor controller with FULL TOUCH SCREEN 7″ interface for displaying all the dynamic values of the device, with 0.1°C resolution and ±0.3°C accuracy. As standard, it includes temperature and alarm recording and it simultaneously displays multi-trace real-time graph, current temperature and set-point (editable), alarm limits (editable), energy consumption and battery status. Door with 3 slots for: SD card with data history, USB port for system download and update, SIM card slot (for GSM module, as optional). Further features: integrated Web Server for LAN (RJ45) and MODBUS TCP/IP network connection, anti-freeze and anti-overheating safety device, and dry contact for remote alarm signal The medical devices destined to the storage of blood, plasma and blood components offer an electric digital lock accessible by an optional, generic user, or single dedicated password, the DMLP TOUCH module for independent recording of temperatures and of any alarm condition (even during power failure), a sensor to simulate product temperature and an external terminal board for dry contact and RJ45 port. The devices can always be upgraded with further accessories such as GSM and Wi.fi, and supervised by local or Cloud based monitoring systems. Acoustic and visual alarms, mutable, will be triggered by any anomaly condition even during power failure thanks to supplied buffer batteries. The events are automatically recorded along with date, time, type of alarm, duration and highest temperature reached. |
 |
|
REFRIGERATOR TECHNICAL DATA Refrigerant gas type: R290 |
Sketch Drawing
