Medium size refrigerator for drugs and vaccines, width of 52 cm only glass door type, positive temperature range and featuring data recording, developped for pharmacies, laboratories, hospitals and private clinics.
| +2 / +15°C Temperature range |
265 lt (9.36 cu ft) Capacity |
| 52 x 66 x 196 cm External dimensions (WxDxH) |
TOUCH Electronic Controller |

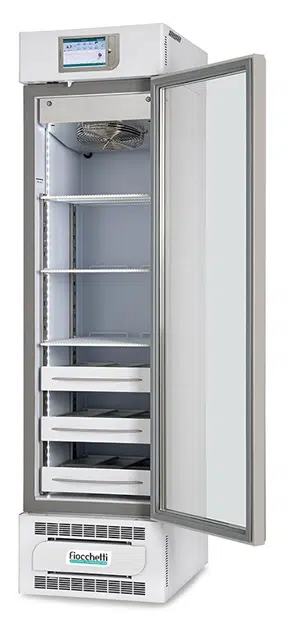

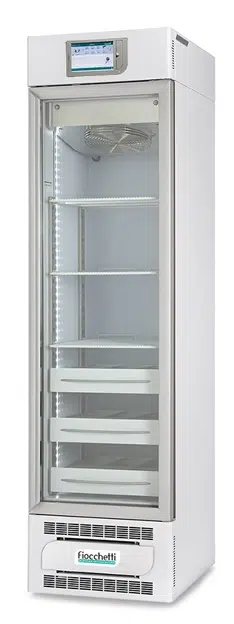

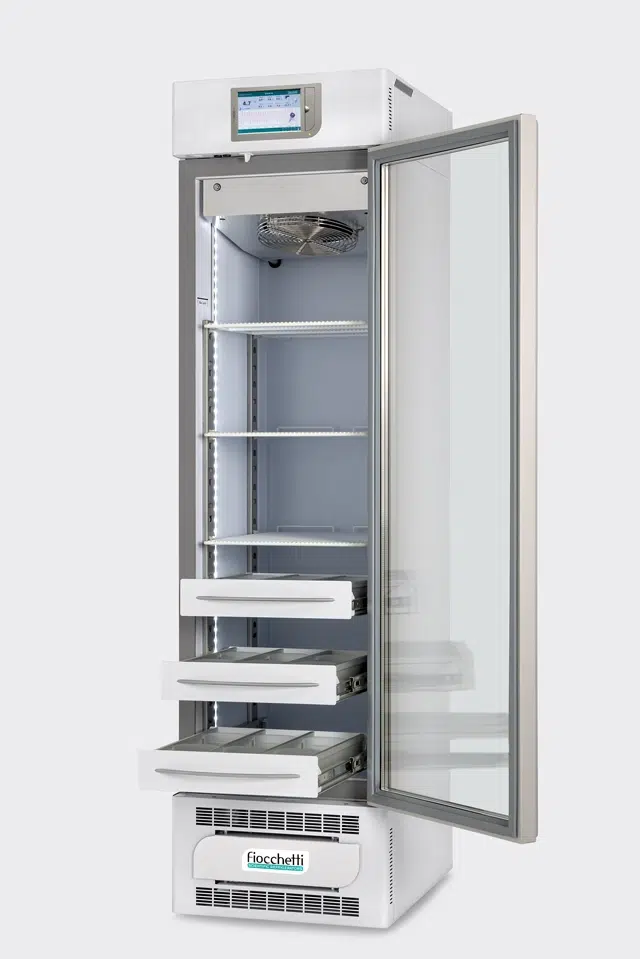

Refrigerator for drugs and vaccines, glass door type
The refrigerators for drugs and vaccines series MEDIKA® feature a clean and functional design, with glass door, and adjustable compartments to enhance product storage.
They have been design specifically for the use in pharmacies, hospital wards, physicians’, aesthetic medicine, dental and ophtalmologist’s practice, laboratories and pharma industries: MEDIKA® refrigerators comply with international standards in force and answer to the most various requirements, thanks to the vast choice of volume capacities and to the chance of customizing the internal fittings.
The door is made of tempered glass according to safety norm CEI EN 60335-2-89, in antifog crystal, heat-insulating, triple layer for an improved thermal perfomance, with profiles in anodyzed aluminium. The all lenght ergonomic handle guarantees a safe and correct grip. The gasket is magnetic type sealing on all four sides, the automatic lock features a return spring, door stop at 90°, the opening side is reversible
|
STRUCTURE AND REFRIGERATION Inner dimensions: 44 x 48,5 x 140 cm Nominal capacity: 300 lt (10,6 cu ft) Net capacity :265 lt (9,4 cu ft) Insulation type: Insulation in PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection. Insulation thickness: 70 mm back / 50 mmm sides Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners. Nr 4 unidirectional rollers included to grant an easy handling and nr 2 front feet for a maximum stability Interior lightning: Full LED, all lenght of inner chamber Refrigeration type: Professional ventilated <strongDefrost type: Automatic, adaptive, with vaporization of condensate water</strong |
 |

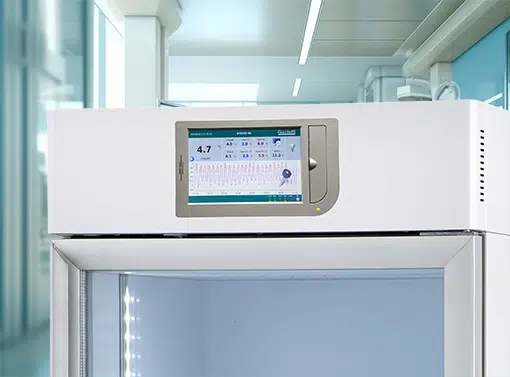

7″ FULL TOUCH SCREEN ELECTRONIC CONTROLLERMicroprocessor controller with FULL TOUCH SCREEN 7″ interface for displaying all the dynamic values of the refrigerator, with 0.1°C resolution and ±0.3°C accuracy. |
 |
REFRIGERATOR TECHNICAL DATARefrigerant gas type: R290 |
 |
Sketch Drawing
