-10 / -20°C
Temperature range |
620 lt (21.89 cu ft)
Capacity |
|
75 x 87 x 210
External dimensions (WxDxH) |
TOUCH Electronic Controller |
Certified plasma freezer equipped with touchscreen controller, featuring data and alarms recording
Medical devices series PLASMA-VISION allow to store frozen bags of plasma and blood products for short periods.

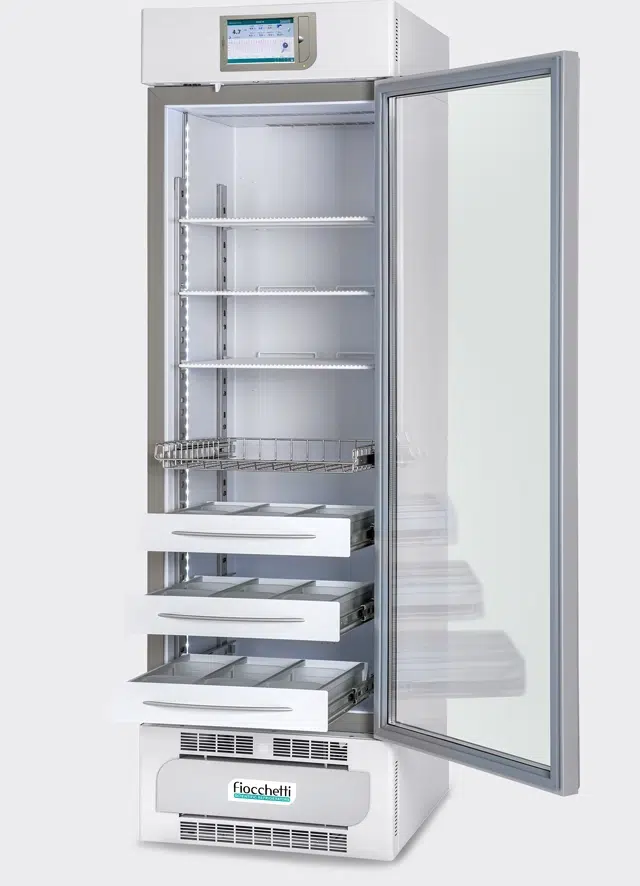

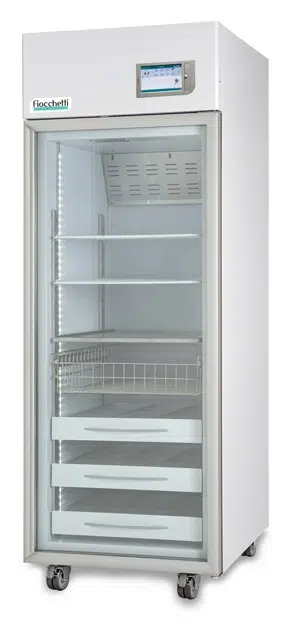

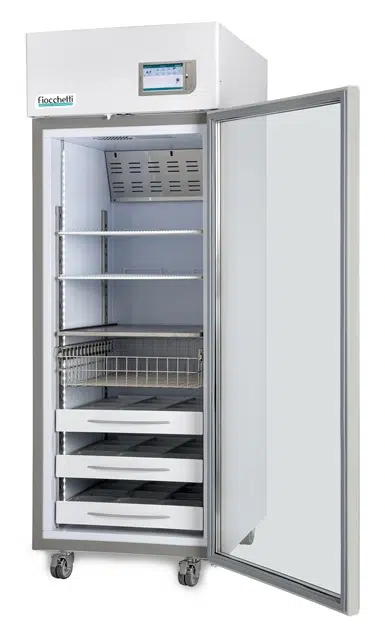

They are characterized by a low-emissivity triple glass door and the ergonomic handle, with an elegant design and modular internal fittings. “
PLASMA-VISION medical devices comply with the international standards in force and, thanks to the different capacities offered and the possibility of customizing the internal fittings, they adapt to the needs of small and large laboratories and transfusion departments.
The PLASMA-VISION series includes Touch controller with graph and independent DMLP Touch board with backup battery for data recording and alarms even in the absence of power, external contacts for their remote control and RJ45 port, product temperature simulation probe and electric lock for access control. Fiocchetti plasma banks are Medical Devices complying with Directive 93/42/EEC (class IIa) and its amendment 2007/47/EEC and are registered in the MD Repertoire of the Italian Ministry of Health. They also comply with 2011/65/CE (RoHS).
|
STRUCTURE AND REFRIGERATION Inner dimensions: 60 x 68 x 150 cm Nominal capacity: 700 l (24,72 cu ft) Net capacity : 620 l (21,89 cu ft) Insulation type: PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection. Insulation thickness: 75 mm Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners. Nr 4 height adjustable feet included to grant maximum stability Interior lightning: Full LED, all lenght of inner chamber, with adjustable brightness Refrigeration type: Professional ventilated Defrost type: Automatic, adaptive, with vaporization of condensate water Power consumption reduction with function Night & Day |
 |
|

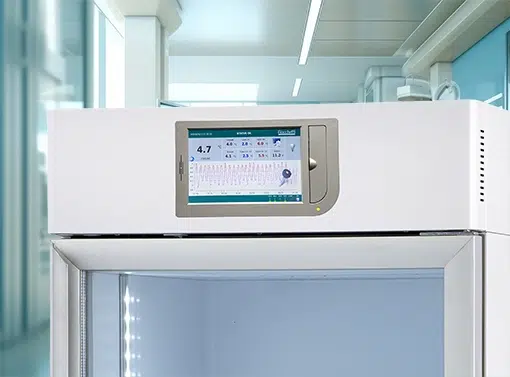

7″ FULL TOUCH SCREEN ELECTRONIC CONTROLLER Microprocessor controller with FULL TOUCH SCREEN 7″ interface for displaying all the dynamic values of the device, with 0.1°C resolution and ±0.3°C accuracy. As standard, it includes temperature and alarm recording and it simultaneously displays multi-trace real-time graph, current temperature and set-point (editable), alarm limits (editable), energy consumption and battery status. Door with 3 slots for: SD card with data history, USB port for system download and update, SIM card slot (for GSM module, as optional). Further features: integrated Web Server for LAN (RJ45) and MODBUS TCP/IP network connection, anti-freeze and anti-overheating safety device, and dry contact for remote alarm signal The medical devices destined to the storage of blood, plasma and blood components offer an electric digital lock accessible by an optional, generic user, or single dedicated password, the DMLP TOUCH module for independent recording of temperatures and of any alarm condition (even during power failure), a sensor to simulate product temperature and an external terminal board for dry contact and RJ45 port. The devices can always be upgraded with further accessories such as GSM and Wi.fi, and supervised by local or Cloud based monitoring systems. Acoustic and visual alarms, mutable, will be triggered by any anomaly condition even during power failure thanks to supplied buffer batteries. The events are automatically recorded along with date, time, type of alarm, duration and highest temperature reached. |
 |
|
REFRIGERATOR TECHNICAL DATA |
 |
Sketch Drawing
